Use Xtool X100 Pad2 Pro To Program VW CC Key

Compared with X100 Pad2, the X100 PAD2 PRO key programmer can support VW 4th & 5th IMMO by working with the KC100 adapter (included in the package). Here’s an example showing you how to use this tool to program keys for VW CC.
Car Model: VW CC 2014
Device: Xtool X100 PAD2 PRO
Procedures:
Step 1:
Read EEPROM chip.
use-xtool-x100-pad2-pro-to-program-vw-cc-key-01 (2)
Step 2:
Prepare two keys: an original one and a blank one.
use-xtool-x100-pad2-pro-to-program-vw-cc-key-02 (2)
Step 3:
Insert the original key to your car.
use-xtool-x100-pad2-pro-to-program-vw-cc-key-03 (2)
Step 4:
Touch X100 PAD2 shortcut on the device screen to start your key programming.
use-xtool-x100-pad2-pro-to-program-vw-cc-key-04 (2)
Step 5:
Select VW under Immobilization on the menu, then “4th/5th Immobilizer system” and touch “OK” to turn on ignition switch.
use-xtool-x100-pad2-pro-to-program-vw-cc-key-05 (2)
Step 6:
Choose “4th Immobilizer system” → “VW Passat/CC (recommend) ” → “Get PIN/CS “, where codes will be extracted from EEPRO chip dump file.
use-xtool-x100-pad2-pro-to-program-vw-cc-key-06 (2)
use-xtool-x100-pad2-pro-to-program-vw-cc-key-07 (2)
Step 7:
Now it’s back to the previous screen. Select “Generate 48 dealers key”,
use-xtool-x100-pad2-pro-to-program-vw-cc-key-08 (2)
use-xtool-x100-pad2-pro-to-program-vw-cc-key-09 (2)
Step 8:
CS code is needed here. Touch “OK”.
use-xtool-x100-pad2-pro-to-program-vw-cc-key-10 (2)
Step 9:
Put the blank key as shown in the image and choose “OK”. After a few seconds, you’ll see a 48 dealer key has been generated successfully.
use-xtool-x100-pad2-pro-to-program-vw-cc-key-11 (2)
Step 10:
Take out the key and select “Match the key” on the screen, where you need to enter PIN code and the number of learning key.
use-xtool-x100-pad2-pro-to-program-vw-cc-key-12 (2)
use-xtool-x100-pad2-pro-to-program-vw-cc-key-13 (2)
Step 11:

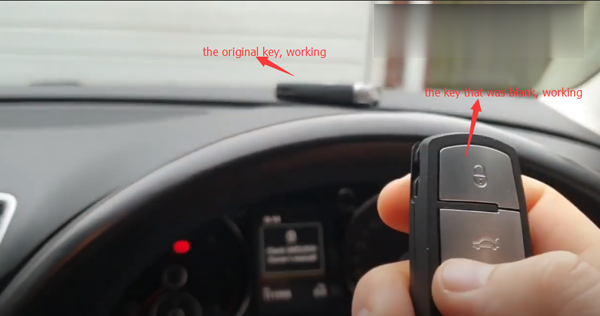

Matching the key succeed! Try the programmed key and it’s working!
use-xtool-x100-pad2-pro-to-program-vw-cc-key-14 (2)
Now you have two keys for your VW car with the help of x100 pad2 pro key programming tool.
use-xtool-x100-pad2-pro-to-program-vw-cc-key-15 (2)
